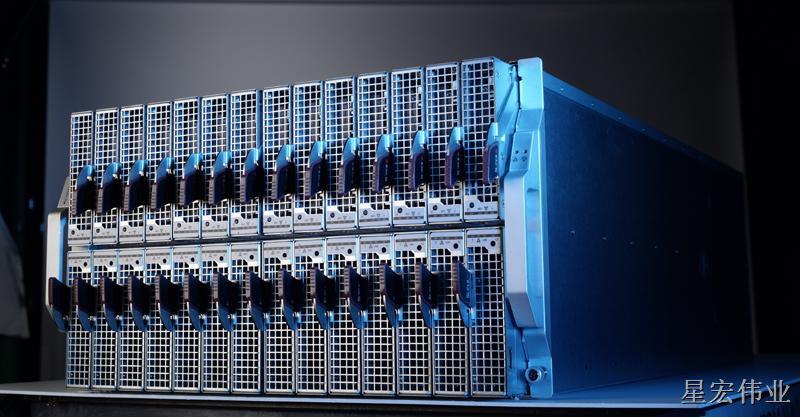

MicroBlade

空间优化 MicroBlade 服务器封装在 19" 工业标准机架中，减少了服务器在数据中心内的占用空间。电源、冷却和网络设备集中在机箱后部，优化了所需空间。 6U 机箱中最多可安装 28 台 Blade （ 112 个节点）。20 台 1U 服务器通常需要 20U 的机架空间，而 MicroBlade 可将密度提高 50% 以上，一个 42U 机架中可容纳 6,272 顆 Avoton 内核。 减少电缆 MicroBlade 服务器机箱通过将其服务器的线路集中在一起，极大地简化了布线工作。通过将刀片服务器整合到一个机箱中，最多可为 10 台 1U 服务器减少 99% 的网络、供电和 KVM 缆线。此外还可减少网络、SAN 连接和管理控制器方面的缆线。 减少缆线数量可加快服务器的部署，而且由于服务器的物理连接更少，也有助于减少故障排查问题。

机箱 MBE-628E-416 (4x PWS) 刀片处理器 Up to 28 hot-plug DP Xeon E5-2600 v3 MicroBlade 组件 Support Supports Intel? based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-001 (IntelFM5224) with 56x 1Gbps downlinks; 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks and 1Gbps RJ45 管理 组件 Supports up to two hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure 电源供应 Up to four hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 8 cooling fans 尺寸 (HxWxD) 10.43" x 17.67" x 32" Available Models MBE-628E-816 - Enclosure chassis with eight High-efficiency 1600W power supplies   MBE-628E-416 - Enclosure chassis with four High-efficiency 1600W power supplies + four fan modules   机箱 MBE-628E-816 (8x PWS) 刀片处理器 Up to 28 hot-plug DP Xeon E5-2600 v3 MicroBlade 组件 Support Supports Intel? based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-001 (IntelFM5224) with 56x 1Gbps downlinks; 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks and 1Gbps RJ45 管理 组件 Supports up to two hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure 电源供应 Up to eight hot-swap High-efficiency 1600W, N+N or N+N redundant power supplies Cooling Design Up to 8 cooling fans 尺寸 (HxWxD) 10.43" x 17.67" x 32" Available Models MBE-628E-816 - Enclosure chassis with eight High-efficiency 1600W power supplies   MBE-628E-416 - Enclosure chassis with four High-efficiency 1600W power supplies + four fan modules   机箱 MBE-628L-416 (4x PWS) 刀片处理器 Up to 28 hot-plug processor blades 组件 Support Supports Intel? based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports up to four hot-plug IntelFM5224 with 56x 2.5Gbps downlinks; 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks and 1Gbps RJ45 管理 组件 Supports up to two hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure 电源供应 Up to four hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 8 cooling fans 尺寸 (HxWxD) 10.43" x 17.67" x 32" Available Models MBE-628L-816 - Enclosure chassis with eight High-efficiency 1600W power supplies   MBE-628L-416 - Enclosure chassis with four High-efficiency 1600W power supplies + four fan modules   机箱 MBE-628L-816 (8x PWS) 刀片处理器 Up to 28 hot-plug processor blades 组件 Support Supports Intel? based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports up to four hot-plug IntelFM5224 with 56x 2.5Gbps downlinks; 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks and 1Gbps RJ45 管理 组件 Supports up to two hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure 电源供应 Up to eight hot-swap High-efficiency 1600W, N+N or N+N redundant power supplies Cooling Design Up to 8 cooling fans 尺寸 (HxWxD) 10.43" x 17.67" x 32" Available Models MBE-628L-816 - Enclosure chassis with eight High-efficiency 1600W power supplies   MBE-628L-416 - Enclosure chassis with four High-efficiency 1600W power supplies + four fan modules
