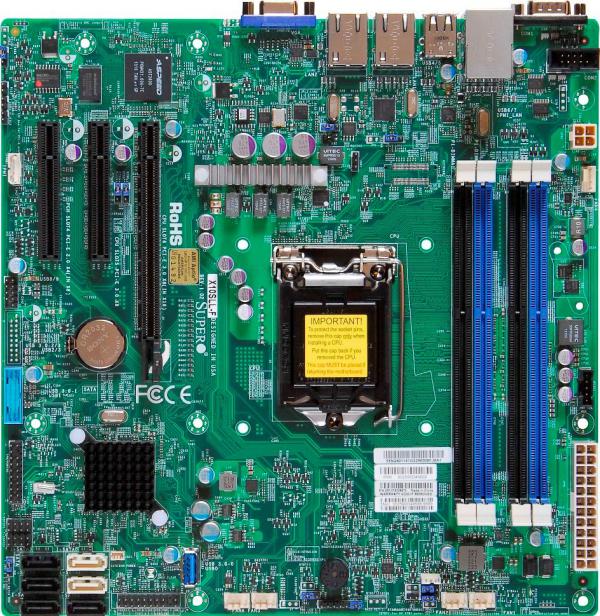

| MBD-X10SLL-F |
|
| |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
|
| CPU |
- Intel® 4th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
- Single Socket LGA 1150 supported, CPU TDP support 85W
|
| |
|
| Memory Capacity |
- Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
- 4x 240-pin DDR3 DIMM sockets
|
| Memory Type |
- 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6 Gbps) ports; RAID 0,1
- Intel® C222 controller for 4 SATA2 (3 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 with 10/100/1000M bps MAC
|
| Network Controllers |
- Intel® Ethernet Controller I210-ATIntel® Ethernet Controller I217LMSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)
|
| Graphics |
|
| |
|
| SATA |
- 2 SATA3 (6Gbps) port
- 4 SATA2 (3Gbps) ports
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 6 USB 2.0 ports (4 rear + 2 headers)
- 2 USB 3.0 ports (1 header + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
|
| PCI-E |
- 1 PCI-E 3.0 x8 (in x16 slot),
- 1 PCI-E 3.0 x8
- 1 PCI-E 2.0 x4 (in x8 slot)
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- DMI (SMBIOS) 2.7
- ACPI 5.0
- USB Keyboard support
|
| |
|
| Software |
- IPMI2.0, NMI, SuperDoctor® III, Watchdog
|
| Power Configurations |
- ACPI Power Management
- Main Switch Override Mechanism
- Power-on mode for AC power recovery
- Internal/External modem ring-on
|
| |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, Chipset Voltage, HT, Memory, Monitors for CPU Cores, VBAT
|
| FAN |
- 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)
|
| Temperature |
- Monitoring for CPU and chassis environment, CPU thermal trip support, FC temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
|
| LED |
- CPU / System Overheat LED, +5V Standby alert LED
|
| Other Features |
- Chassis intrusion detection, Chassis intrusion header
|
| |
|
| Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
