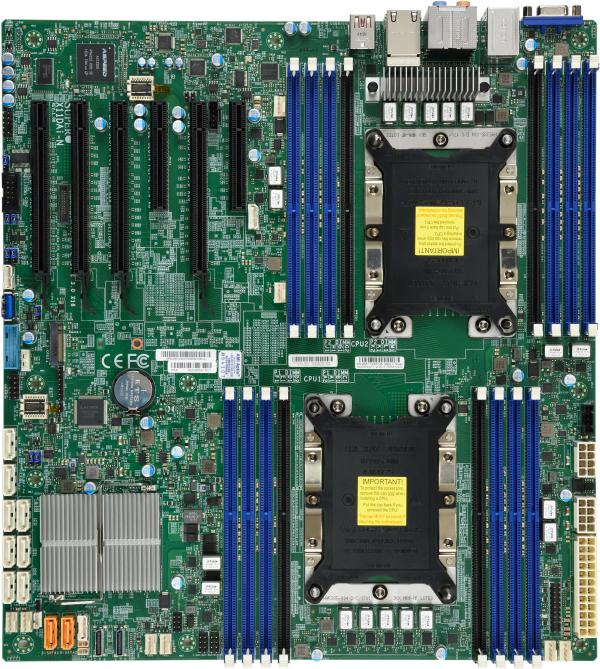

| MBD-X11DAi-N |
|
| |
|
| Form Factor |
|
| Dimensions |
- 12" x 13" (30.48cm x 33.02cm)
|
| |
|
| CPU |
- Intel® Xeon® Scalable Processors.
- Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
|
| |
|
| Memory Capacity |
- Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
|
| Memory Type |
|
| DIMM Sizes |
- RDIMM: 128GB
- LRDIMM: 128GB
- 3DS LRDIMM: 128GB, 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with GbE from C621
Support 1000BASE-T
|
| Audio |
|
| Graphics |
|
| |
|
| USB |
- 4 USB 3.0 ports (4 rear)2 USB 3.1 ports (2 rears)
|
| Video Output |
|
| Serial Port / Header |
|
| TPM |
|
|
|
|
| PCI-E |
- 4 PCI-E 3.0 x16,
- 2 PCI-E 3.0 x8
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2260, 2280, 22110
- Key: M-Key
|
| |
|
| BIOS Type |
|
| |
|
| Software |
- Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 7-fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT
|
| FAN |
- 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
|
| LED |
|
| Other Features |
- Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
|
| |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
