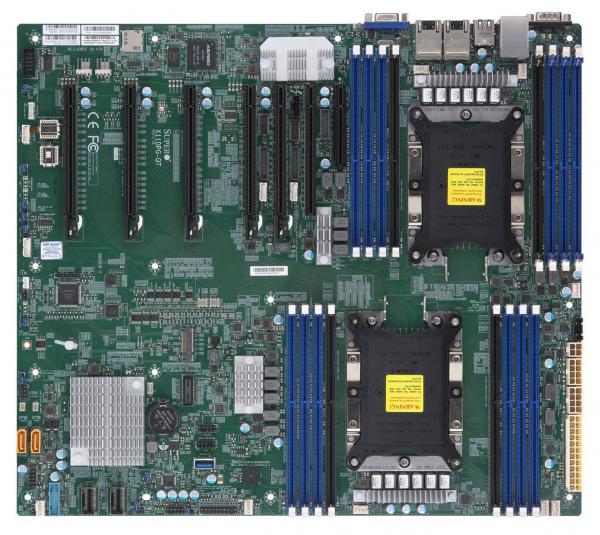

| MBD-X11DPG-QT |
|
| |
|
| Form Factor |
|
| Dimensions |
- 15.12" x 13.2" (38.4cm x 33.53cm)
|
| |
|
| CPU |
- Intel® Xeon® Scalable Processors.
- Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
|
| Cores / Cache |
|
| |
|
| Memory Capacity |
- Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
| DIMM Sizes |
- RDIMM: 64GB
- LRDIMM: 128GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| |
|
| Chipset |
|
| SATA |
- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with Intel® X550 10GBase-T Ethernet Controller
|
| Audio |
|
| Graphics |
|
| |
|
| SATA |
|
| USB |
- 4 USB 2.0 ports (2 rear + 2 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
| Video Output |
- 1 VGA D-Sub Connector port
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
|
| PCI-E |
- 6 PCI-E 3.0 x16,
- 1 PCI-E 3.0 x4 (in x8 slot)
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2280, 22110
- Key: M-Key
|
| |
|
| BIOS Type |
|
| BIOS Features |
- Plug and Play (PnP)
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| Power Configurations |
|
| |
|
| Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 5+1 Phase-switching voltage regulator, Chassis intrusion header, HT, Supports system management utility, VBAT
|
| FAN |
- 10x 4-pin fan headers (up to 10 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
|
| Temperature |
|
| LED |
- CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
|
| Other Features |
- Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
|
| |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
