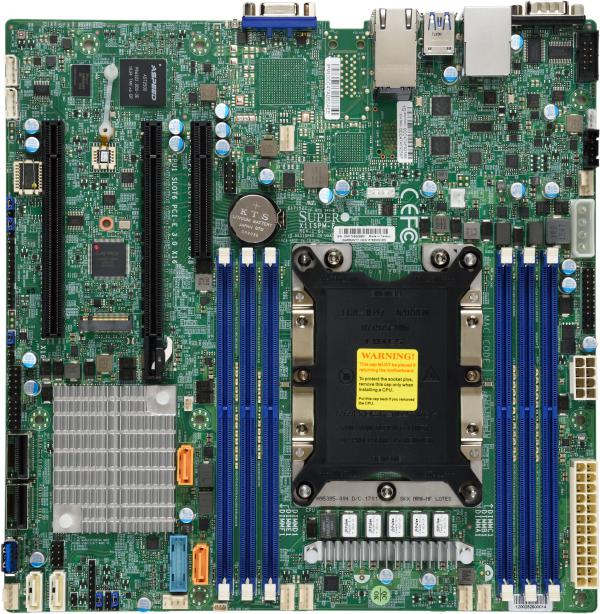

| MBD-X11SPM-F |
|
| |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
|
| CPU |
- Intel® Xeon® Scalable Processors.
- Single Socket P (LGA 3647) supported, CPU TDP support 165W
|
| Cores / Cache |
|
| |
|
| Memory Capacity |
- 6x 288-pin DDR4 DIMM slots;
- Up to 768GB ECC 3DS LRDIMM;
- Up to 384GB ECC LRDIMM;
- Up to 192GB ECC RDIMM
|
| Memory Type |
- 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
|
| DIMM Sizes |
- RDIMM: 4GB, 8GB, 16GB, 32GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 64GB, 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
|
| Graphics |
|
| |
|
| SATA |
|
| LAN |
|
| USB |
- 6 USB 2.0 ports (2 rear + 4 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
|
| PCI-E |
- 2 PCI-E 3.0 x16,
- 1 PCI-E 3.0 x8
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2242, 2280
- Key: M-Key
- Double Height Connector
|
| |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.0
- RTC (Real Time Clock) Wakeup
- SMBIOS 3.0 or later
|
| |
|
| Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
|
| Temperature |
- CPU thermal trip support, PECI
|
| LED |
- CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
|
| Other Features |
- ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
|
| |
|
| Operating Temperature Range |
- 0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
- -20°C ~ 60°C (-4°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 10% ~ 85% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 10% ~ 95% (non-condensing)
|
|
