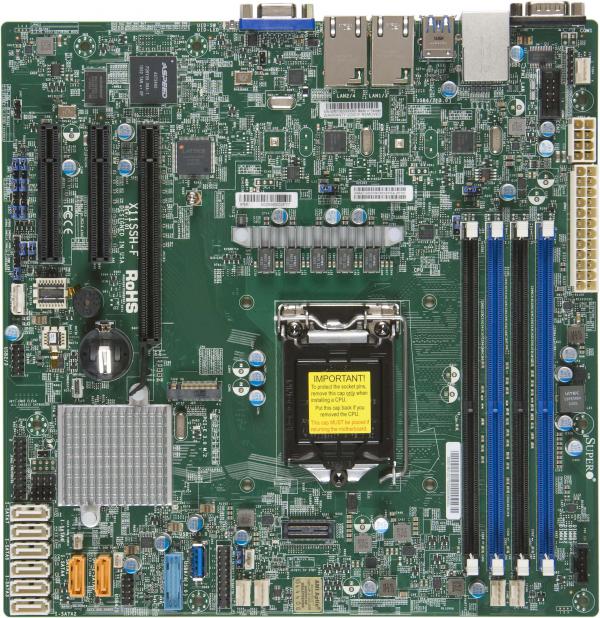

| MBD-X11SSH-F |
|
| |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
|
| CPU |
- Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
- Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
|
| Note |
- BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
|
| |
|
| Memory Capacity |
- 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
|
| Memory Type |
- 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with Intel® Ethernet Controller I210-AT
|
| Graphics |
|
| |
|
| USB |
- 6 USB 2.0 ports (2 rear + 4 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
|
| PCI-E |
- 1 PCI-E 3.0 x8 (in x16 slot),
- 1 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8 slot)
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x2
- Form Factor: 2280
- Key: M-Key
- Double Height Connector
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- DMI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| Software |
- Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
|
| FAN |
- 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Thermal Monitor 2 (TM2) support
|
| LED |
- CPU / System Overheat LED, UID/Remote UID
|
| Other Features |
- Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL
|
| |
|
| Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
